제품 상세 정보:
|
| 제품명: | 쐐기형 와이어 스크린 | 재료: | 스테인레스 스틸 와이어, 탄소강, 맞춤형. |
|---|---|---|---|
| 애플리케이션: | 필터, 스크린, | 표면 처리: | 광택 |
| 특징: | 내식성, 내구성, 내산성, 장시간 사용 | 너비: | 1m 또는 1.22m, 맞춤형 |
| 용법: | 화학, 오일/공기 필터, | 길이: | 2m 또는 2.44m, 맞춤형 |
| 견본: | 사용 가능 | 모양: | 정사각형, 원형 또는 다른 모양, 튜브, 곡선으로 절단 가능 |
Wedge wire is a welded steel structure, primarily used for filtration, separation, and retention media. It consists of surface profiles, usually V-shaped, that are resistance welded onto support profiles. The distance between the surface profiles is controlled very accurately, as it forms the slot through which the filtrate flows.
| Product Name | Wedge Wire Mesh |
|---|---|
| Sheet Size | 1m*2m, 2m*3m, Customized Sizes |
| Sheet Design | Tube Design, Flat Sheet Design, Curved Sheet Design, Customized Special Sheets |
| Material | Stainless Steel 304, Stainless Steel 316, Stainless Steel 201, Carbon Steel, Customized |

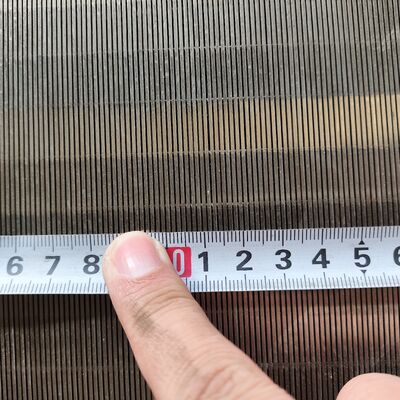

| Slot Size | 0.2mm-5mm (Customized Based on Customer Demand) |
| Support Rod | 2*3mm, 3*4mm, 6mm Round Rod, Customized |
| Usage | Liquid Filtering, Solid Separation |

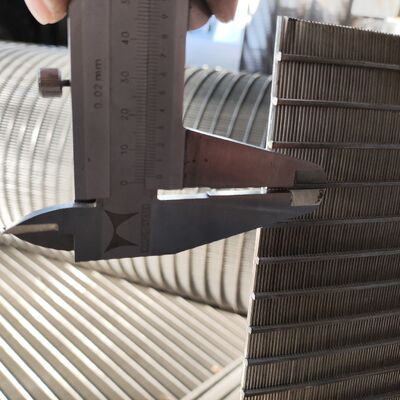

| Profile Wire | Wedge Shape Width: 0.75mm, 1.0mm, 1.5mm; Height: 1.5mm, 2.0mm, 3.0mm |
Packaging: Each sheet is covered with plastic film, then packed in wooden pallets or cartons.
Delivery: By sea, air, or express (DHL, FedEx, UPS) according to customer's needs.
curved design

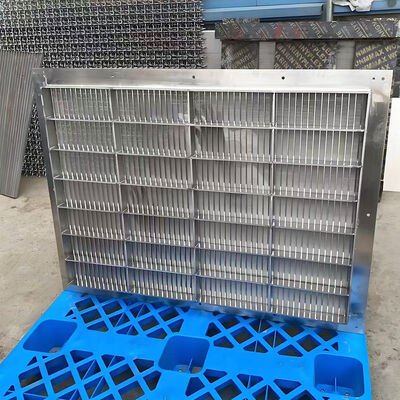

flat sheet
We offer full customization service to meet your specific needs. Our factory is available for customized products including:
If you have product drawing, please send us , we will check and back to you as soon as possible.
Customized service, multiple styles to choose from,
supports customizing based on provided drawings,
designs display:
